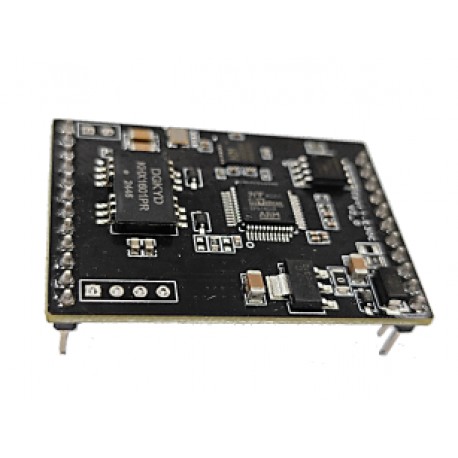

Thiết bị iot Hi-Flying Eport-E30C

Overview of Characteristic Cortex-M3 MCU with 2MB Flash and 128KB SRAM Use FreeRTOS Operation System Support TCP/IP/Telnet /Modbus TCPProtocol Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 921600 bps Support 10/100M Ethernet Auto-Negotiation Support Easy ConfigurationThrough a Web Interface Support Security ProtocolSuch As AES/DES Support Web OTA Wirelss Upgrade Support Industrial Temperature:-40 to +85˚ C Single +5V Power Supply Size: 45 x 32x 8 mm(L x W x H) I tem

System Information Processor/Frequency Cortex-M3/96MHz Flash/SDRAM 2MB/128KB Operating System FreeRTOS Ethernet Port Port Number 1 RJ45 with LED Interface Standard 10/100 Base-T Auto-Negotiation Protection 2KV Isolation Transformer Integrated Network Protocol IP, TCP, UDP, DHCP, DNS, HTTP Server/Client, ARP, BOOTP, AutoIP, ICMP, Web socket, Telnet, FTP,TFTP, uPNP, NTP, Modbus TCP Security Protocol SSL v3 AES 128Bit DES IPV6 Support Not yet Serial Port Port Number 1 + 1 debug Interface Standard 3.3V TTL: 2 wire（TX,RX） Data Bits 5,6,7,8 Stop Bit 1,2 Check Bit None,Even,Odd,Space,Mark Baud Rate TTL: 600 bps~921600 bps Flow Control No Flow control Hardware RTS/CTS Software Xon/ Xoffflow control Software Web Pages Http Web Configuration Customization of HTTP Web Pages Log Remote Realtime Log, Configuration Web CLI XML import Telnet IOTManagerPC Software Firmware Upgrade Web SDK For Dev
