Thiết bị iot Hi-Flying HF6401

Thiết bị iot Hi-Flying HF6401
| Thương hiệu | Hi-Flying |
| Chuẩn không dây | BLE 5.0 |
| Dải tần số | 2.402GHz-2480GHz |
| Công suất phát | Max 15dBm |
| Receiver Sensitivity | -97dBm |
| Bộ xử lý | Cortex-M3 |
| Tần số cơ bản | 96MHz |
| Hệ điều hành | FreeRTOS |
| Protection | 8KV Isolation |
| Độ nhạy thu | FDD B1: -96dBm(10M) FDD B3: -96dBm(10M) FDD B5: -96dBm(10M) FDD B8: -96.5dBm(10M) TDD B38: -96dBm(10M) TDD B39: -97dBm(10M) TDD B40: -96.5dBm(10M) TDD B41: -96dBm(10M) WCDMA B1: -110dBm WCDMA B8: -111dBm TDSCDMA B34: -109dBm TDSCDMA B39: -109dBm GSM 900M: -109dBm GSM 1800M: -109dBm |

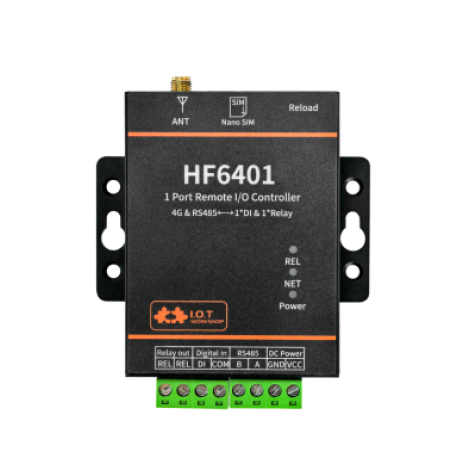

P roduct Overview HF6401 is a full network 4G DTU that supports 4G networks of China Mobile, China Unicom, and China Telecom. The network supports a maximum downlink speed of 10Mbps and a maximum uplink speed of 5Mbps. HF6401 is equipped with rich network protocols and integrates RS485 standard data transmission interface, without the need for any driver programs, making it convenient for traditional serial devices to connect to the internet. Almost all M2M needs can be met, including car and personal tracking services, wireless POS machines, smart metering, industrial grade PDAs, shared bicycles, shared cars, and other M2M applications Product Features Support Bluetooth configuration parameters Support 4G full network LTE-TDD, LTE-FDD supports China Mobile, China Unicom, and China Telecom 4G networks Supports multiple network communication protocols such as TCP/UDP/MQTT/WebSocket/HTTP S
