Thiết bị iot Hi-Flying MTIO1-4FD4RK

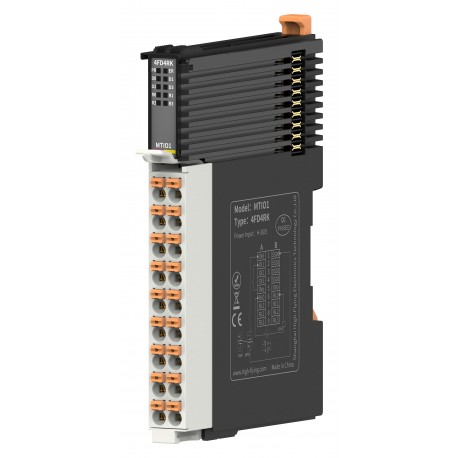

Module overview  MTIO1-4FD4RK is a new generation of IO acquisition and control module launched by Hanfeng. It adopts extended structure design, flexible matching, self-developed Hanfeng H-BUS backplane bus, combined with high-speed acquisition protocol, fast realization of backplane module identification and automatic configuration matching.  MTIO1-4FD4RK is a 4-channel digital input 4-channel relay output expansion module, and the width after stitching is only 12mm.  Support source type or drain type input, input PNP type high level valid or NPN type low level valid. Binary control signals from the field (e.g. sensors, encoders, switches or proximity switches) can be received. The filtering time can be set.  support relay output, output load capacity is 3A@DC30 or 2.5A@AC250.  The module uses Push-inCAGECLAMP technology, which allows a single strand of wire to be inserted directly
