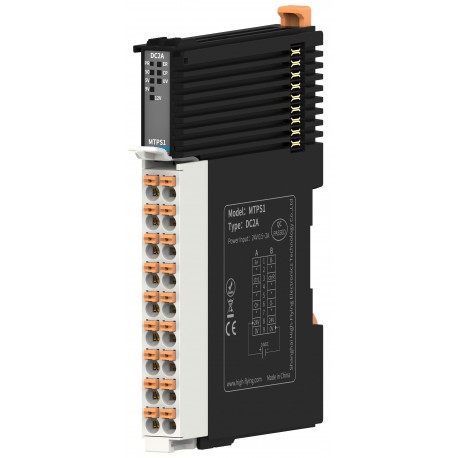

Thiết bị iot Hi-Flying MTPS1-DC2A

Module overview  MTPS1-DC2A is a new generation relay power supply for IO acquisition and control module launched by Hanfeng. It adopts extended structure design, flexible matching, self-developed Hanfeng H-BUS backplane bus, combined with high-speed acquisition protocol, fast realization of backplane module identification and automatic configuration matching.  MTPS1-DC2A is a controllable relay power supply 2A current output module. It supports a maximum of 16 modules and is suitable for communication interface modules of MT series products (such as MT200, MTIO1, and MTRS1).  If the cable is connected to the 24V switching power supply directly, H-BUS directly supplies H-BUS power to subsequent expansion devices. If you short ctrL and ctrR, in addition to the H-BUS can expand the power relay, it can also be controlled by the internal MCU between O+ and O- output 5V, 9V, 12V less than
