Thiết bị iot Hi-Flying MTRS1-2S232M
Thiết bị iot Hi-Flying MTRS1-2S232M
Mã SP: HI-FLYING-HI-FLYING-MTRS1-2S232M0 đánh giáLượt xem: đang cập nhật
Installation mode: DIN35mm rail mounting
StorageTemp.: -20°C~60°C
Serial: 2 ：RS232 DB9 Male Connector
Bus input power rated voltage: 9VDC（8.55VDC～9.45VDC）
Class of protection: IP20
Giá niêm yết:Chưa có giá niêm yếtGiá khuyến mại:
Liên hệ[Giá đã có VAT]
| Thương hiệu | Hi-Flying |
| Installation mode | DIN35mm rail mounting |
| StorageTemp. | -20°C~60°C |
| Serial | 2 ：RS232 DB9 Male Connector |
| Bus input power rated voltage | 9VDC（8.55VDC～9.45VDC） |
| Class of protection | IP20 |
| Connection mode | screw-free |
| Firmware upgrade function | support |
| Net product weight | ＜80g |
| Overall dimension | 26.5*79*111.5mm（L*W*H） |

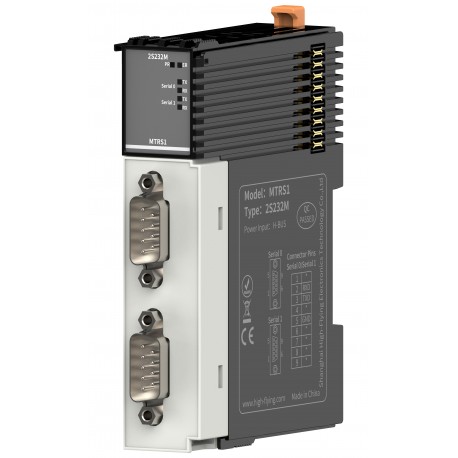

Module overview MTRS1-2S232M is a new generation of serial port acquisition and control module launched by Hanfeng. It high-speed acquisition protocol, it quickly realizes backplane module recognition and automatic configuration matching. The product is compact in size, with guide rail installation, saving space. MTRS1-2S232M is a 2-channel 232 serial port DB9 male expansion module, and the width after splicing is only 12mm. Simple and practical, with rich indicator lights, the device status can be determined at a glance adopts an extended structure design, flexible matching, and self-developed Hanfeng H-BUS backplane bus. With
Sản phẩm này chưa có hướng dẫn sử dụng trong Payload CMS.
Chưa có driver, catalogue hoặc tài liệu kỹ thuật được đính kèm.
