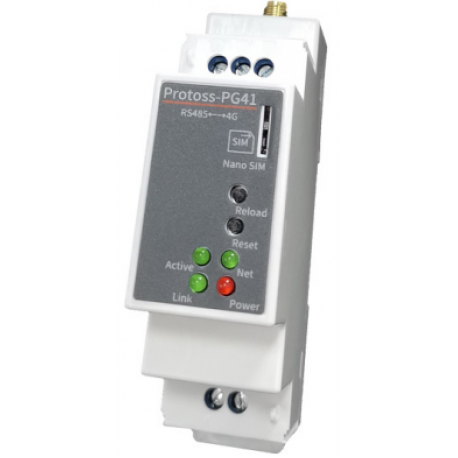

Thiết bị iot Hi-Flying Protoss-PG40&PG41&PG42
Thiết bị iot Hi-Flying Protoss-PG40&PG41&PG42
Mã SP: HI-FLYING-HI-FLYING-PROTOSS-PG40-PG41-PG420 đánh giáLượt xem: đang cập nhật
Hỗ trợ LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, cellular mạng, sub-type to Hỗ trợ specific cellular mạng
Hỗ trợ RS485 to 2G/3G/4G truyền dữ liệu, UART baud rate Up to 460800bps
Hỗ trợ Max 3 Channel TCP/UDP connections, Each Connection Hỗ trợ 1400 Bytes of Data Cache
Hỗ trợ Multiple Working Modes: mạng Transparent Transmission Mode, HTTP Mode, MQTT, WebSocket
Hỗ trợ IOTMaster Tool, Remotely và Dynamically Modify Module Parameters
Giá niêm yết:Chưa có giá niêm yếtGiá khuyến mại:
Liên hệ[Giá đã có VAT]
| Thương hiệu | Hi-Flying |
| Bộ xử lý | Cortex-M3 |
| Tần số cơ bản | 96MHz |
| Hệ điều hành | FreeRTOS |
| Chuẩn giao diện | RS485 |
| Công suất phát | LTE-TDD: Class 3(23dBm+1/-3dB) LTE-FDD: Class 3(23dBm±2dB) WCDMA: Class 3(24dBm+1/-3dB) TD-SCDMA: Class 3(24dBm+1/-3dB) GSM900: Class 4(33dBm±3dB) DCS1800: Class 1(30dBm±3dB) GSM900 8-PSK: Class E2(27dBm±3dB) DCS1800 8-PSK: Class E2(26dBm±3dB) |
| Độ nhạy thu | FDD B1: -96dBm(10M) FDD B3: -96dBm(10M) FDD B5: -96dBm(10M) FDD B8: -96.5dBm(10M) TDD B38: -96dBm(10M) TDD B39: -97dBm(10M) TDD B40: -96.5dBm(10M) TDD B41: -96dBm(10M) WCDMA B1: -110dBm WCDMA B8: -111dBm TDSCDMA B34: -109dBm TDSCDMA B39: -109dBm GSM 900M: -109dBm GSM 1800M: -109dBm |
| Internet Type | 4G/3G/GSM/GPRS |
| Tốc độ dữ liệu | LTE FDD：50Mbps(UL)， 150Mbps(DL) TDD：35Mbps(UL)， 130Mbps(DL) WCDMA 5.76Mbps(UL)， 42Mbps(DL) TD-SCDMA 2.2Mbps(UL)， 4.2Mbps(DL) CMDA 1.8Mbps(UL)，3.1Mbps(DL) GSM/GPRS/EDGE 9.6Mbps(UL)，14.4Mbps(DL) |
| Multi-Slot Class | GPRS Class 12 |
Product Overview Protoss-PG4X is a five mode full network 4G DTU that supports both China Mobile and China Unicom 2G/3G/4G networks, as well as China Telecom 4G networks (excluding China Telecom 3G). The network supports a maximum downlink speed of 150Mbps and a maximum uplink speed of 50Mbps, and can function normally in remote areas lacking 3G and 4G network coverage (mobile and connected). Protoss-PG4X has rich built-in network protocols and integrates RS485 standard data transmission interface, without the need for any driver programs, making it convenient for traditional serial port devices to connect to the internet. It can almost meet all the needs of M2M, including car and personal tracking services, wireless POS machines, smart metering, industrial grade PDAs, shared bicycles, shared cars, and other M2M applications. Overview of Characteristic Support LTE-TDD, LTE-FDD, WCDMA, TD
Sản phẩm này chưa có hướng dẫn sử dụng trong Payload CMS.
Chưa có driver, catalogue hoặc tài liệu kỹ thuật được đính kèm.
